MOSgen makes up to 280,000 MOS in one run

MOSgen™ is a benchtop instrument. Its chip forms droplets of cells in matrix in four lanes, and each droplet gels into one MOS®, ready to go into a plate.

Request an evaluationSee the specifications
Cells forming droplets of matrix in the MOSgen chip

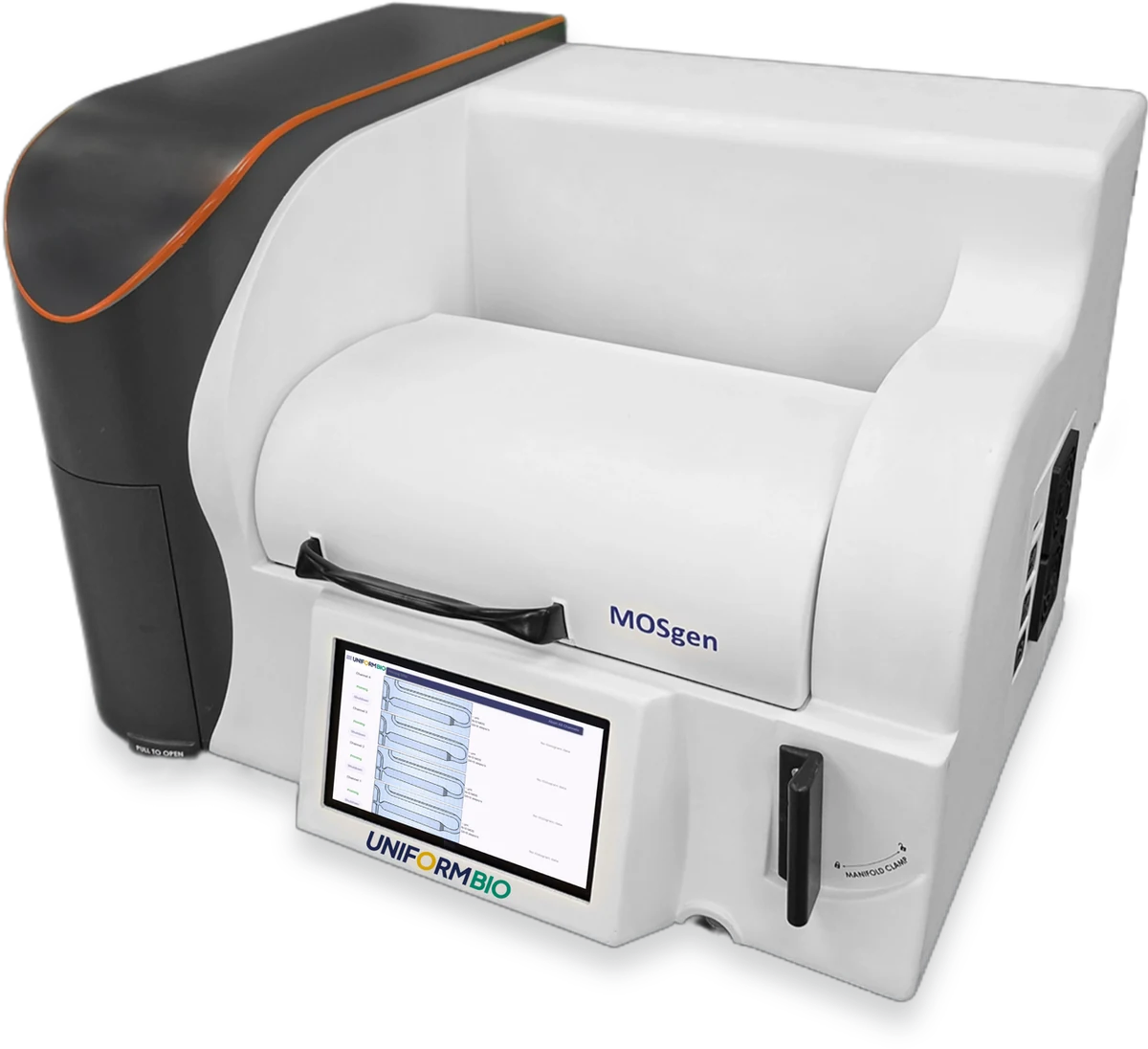

MOSgen benchtop instrument, lid closed

MOSgen, with cells forming droplets in the chip behind it.

Run time
Under15 min

for a full run, four lanes at once.

Per lane
About70,000

MOS from each lane, up to 280,000 per run.

Starting cells
Per dropletSelectable

set by a simple dilution.

MOSgen on the bench

MOSgen with the lid closed

Lid closed, during a run.

MOSgen with the lid open, showing the deck

Lid open, ready to load the deck.

How a run works

Three steps happen on MOSgen. The MOS come out in growth media, ready to pipette into 96, 384, or 1536-well plates.

Step 1

Load

Cells in matrix and growth media go on the deck.

Step 2

Scan

Scan the deck, and all four lanes start together.

Step 3

Run

Four lanes make up to 280,000 MOS in under 15 minutes.

Specifications

Output
Up to 280,000 MOS per run, about 70,000 in each of four lanes
Run time
Under 15 minutes
Uniformity
Under 5% CV in MOS diameter across a run
Starting cells
Selectable per droplet, set by a simple dilution
Samples
Cell lines, PDX, PDO, and biopsies, fresh or frozen
Matrix
Thermoresponsive hydrogels, including Matrigel, Cultrex BME, and EZgel. Permeable to stains, antibodies, and T cells.
Consumables
Single-use kits
Use
For Research Use Only. Not for use in diagnostic procedures.

Early Access is open

Early Access places evaluation units at screening cores, pharma R&D groups, and translational research programs.

Request an evaluation
